DialogCheck
Setting the standard for dialog intelligibility
Every word counts
Poor dialog intelligibility is one of the biggest sources of complaints from film and television audiences, with studies suggesting that almost half of viewers prefer to watch with subtitles. But this doesn’t have to be the case! DialogCheck is an AI-powered dialog intelligibility meter, designed to provide an objective measure of speech clarity.
For an audio engineer who might have been working on a scene for hours or even days, hearing the same dialog hundreds of times, it’s a challenge to predict how a mix will sound to someone hearing it for the first time. DialogCheck combines ‘Listening Effort’ technology developed by Fraunhofer IDMT with a history view inspired by NUGEN Audio’s iconic VisLM loudness meter. The resultant plug-in, driven by dual AI neural networks and developed alongside Netflix, provides clear and intuitive data to support audio engineers in making informed decisions for their dialog mix.

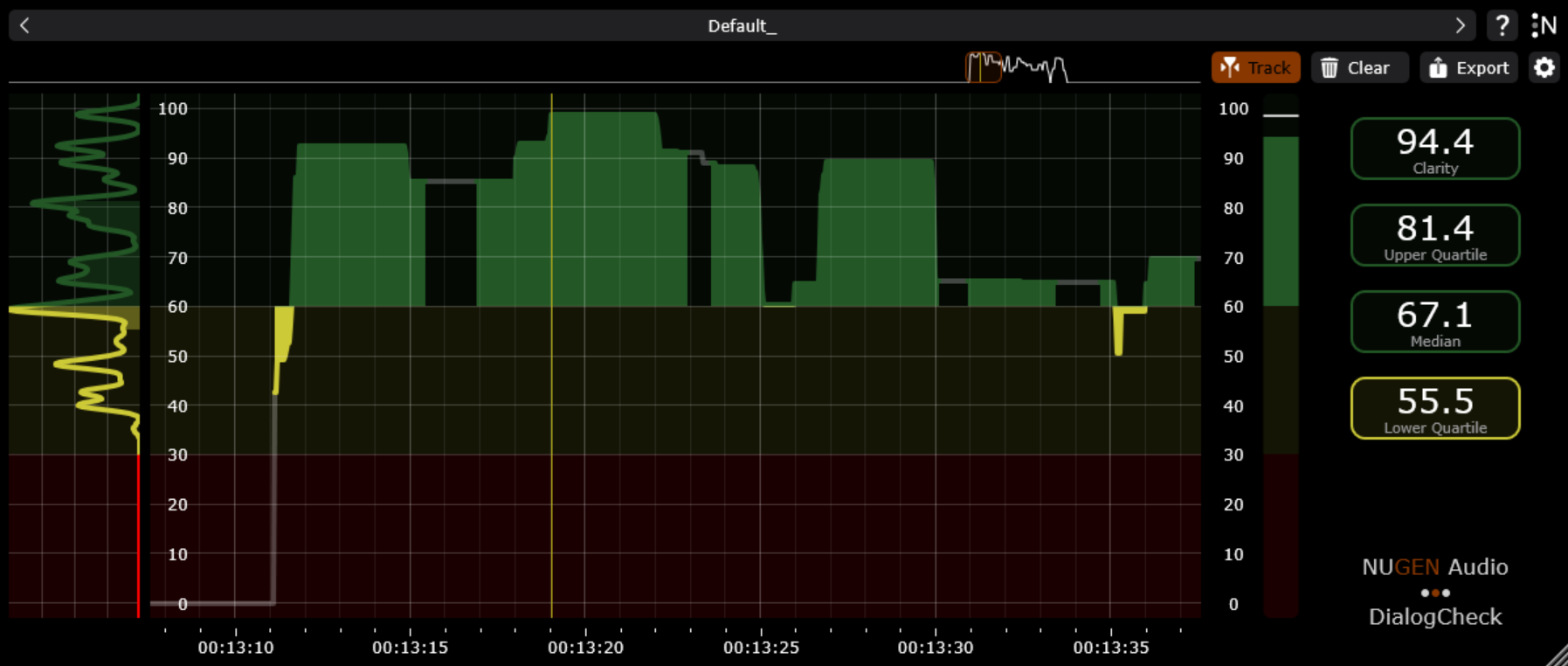

Clear and intuitive
- Supports up to 7.1.4 channels
- Realtime bar meter
- Timecode-locked history graph
- Realtime momentary clarity readout
- Median clarity readout
- User-definable Upper and Lower Percentile readouts
What impacts dialog intelligibility?
Many of the factors that negatively impact dialog intelligibility are outside an audio engineer’s control. Speech might be in a language or dialect that the listener doesn’t understand, or might not have been enunciated clearly, the listener may be hearing impaired, or in a poor listening environment.
But there are other factors we usually do have control over; loudness of dialog, loudness of other audio (e.g. music or background noise), quality of audio signal, and the use of reverb and other effects, to name a few. If the negative impacts of these factors are mitigated as much as possible, the factors outside our control will most likely cause fewer problems.
All of these factors, both those outside the control of audio post production engineers and those within our control, fall into what Netflix's TechBlog has referred to as the Dialog Integrity Pipeline.
How can intelligibility be improved?
DialogCheck is a measurement tool, it does not apply any processing to the audio signal. But it does provide an objective value that acts as a signpost for where there might be room for improvement. This might mean adjusting the balance between dialog, music and effects in the mix, it might mean adjusting audio processing or using noise reduction and audio cleanup techniques to adjust the source audio. In some cases it might even mean resorting to ADR!
DialogCheck could also be integrated into a pre-production workflow in order to ensure that the source audio already reaches the desired level of clarity.
Listening Effort Meter
DialogCheck implements technology developed by Fraunhofer IDMT's Oldenburg Branch for Hearing, Speech and Audio Technology HSA, which uses automatic speech recognition and psychoacoustic modeling. The LE-Meter has been validated through systematic listening tests, and its metrics show a high correlation with subjective assessments of listening effort.
Typical applications
- Film audio
- Television audio
- Radio
- Podcasting
- Game audio
Related products
Loudness compliance perfectly integrated into your workflow, using a clear resizeable interface and ground breaking ReMEM automated loudness memory technology.
LM-Correct gives you a unique, immediate and hassle-free route to loudness-compliant audio in your day-to-day loudness workflow, saving you time and preventing costly mistakes.
The most powerful loudness solution available for your NLE/DAW today. 3 products working in concert to deliver unsurpassed quality and workflow efficiency.
The full range of NUGEN’s audio post tools. A master set of 12 plug-ins with uncompromising quality and creativity.
Product specifications
Available formats
Supports 64-bit AAX, VST3 and AU.
Minimum system requirements
macOS 11 / 512 MB RAM
Windows 7 / 512 MB RAM
